Harwi OrcaMatic 1850 /2150

Click on photograph for zoom and see all photos

Description

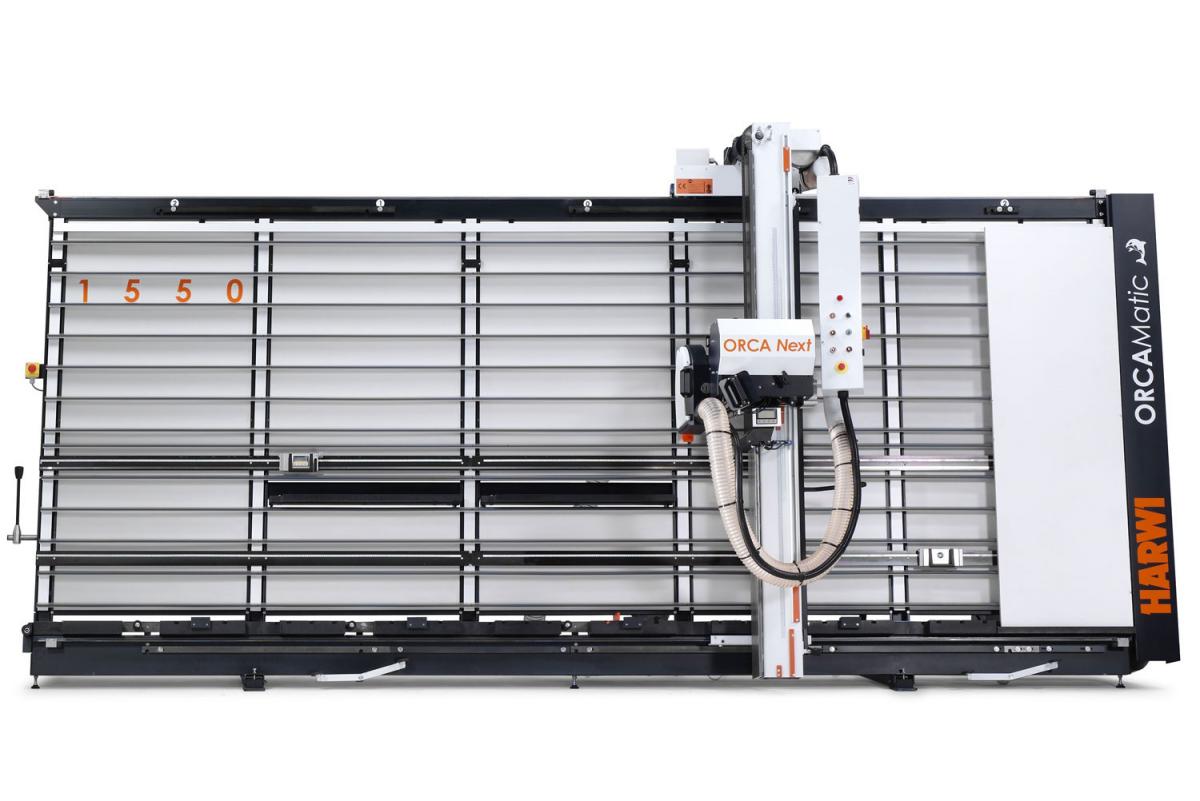

Harwi also produces a vertical panel saw for automatic horizontal and vertical sawing. The OrcaMatic a vertical panel sawing machine with a vertical cut of 1850mm and a horizontal cut of 4300mm or a vertical cut of 2150mm and a horizontal cut of 4300mm. Depth of cut is 55mm.

WANT MORE INFORMATION

Call Us On 028 9081 7704

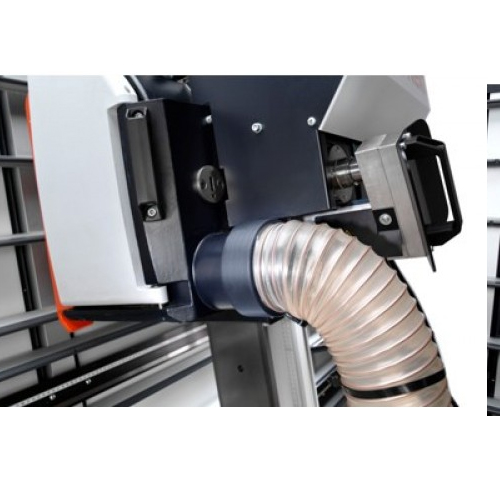

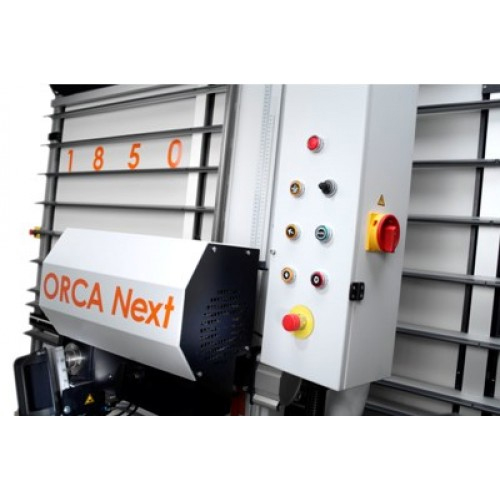

Starting with the plunging of the sawing unit automatically into the panel, the machine will cut horizontally or vertically. The machine is supplied standard with a frequency inverter for variable speed. The sawing unit will remain in hold position at the end of the machine or, if interrupted will return to its starting position. This allows ergonomic cutting of the panels , without the need for the operator to control the unit manually. The automatic mode can be deactivated in order to cut small work pieces manually. The semi-automatic vertical panel saws are designed for power and stability to increase productivity and durability. Harwi offers two models: the OrcaMatic 1850 and the OrcaMatic 2150. Both machines can be equipped with optional equipment and extra’s to fulfil customer specifications.

Technical specifications:
Orcamatic


1850
2150
Max. vertical cut
mm

1850
2150
Max. horizontal cut
mm

4300
4300
Max. depth of cut
mm

60
60
Sawblade diameter
mm

250
 250
Scoringblade diameter
mm

70
70
Motorpower
kW

4,0
4,0
Voltage
V

400/3~/50Hz
400/3~/50Hz
Air pressure
bar

6
6
Speed
rpm

2-20
2-20
Return speed
rpm

20
20
Spindle speed
rpm

5000
5000
Scoring blade speed
rpm

13000
13000
Weight
kg

600
640
Subject to change without notice. Special models upon request Dimmensions:
Orca


1850
2150
A
mm

900
900
B
mm

1400
1400
C
mm

2300
2600
D
mm

2700
3000
E
mm

5300
5300
