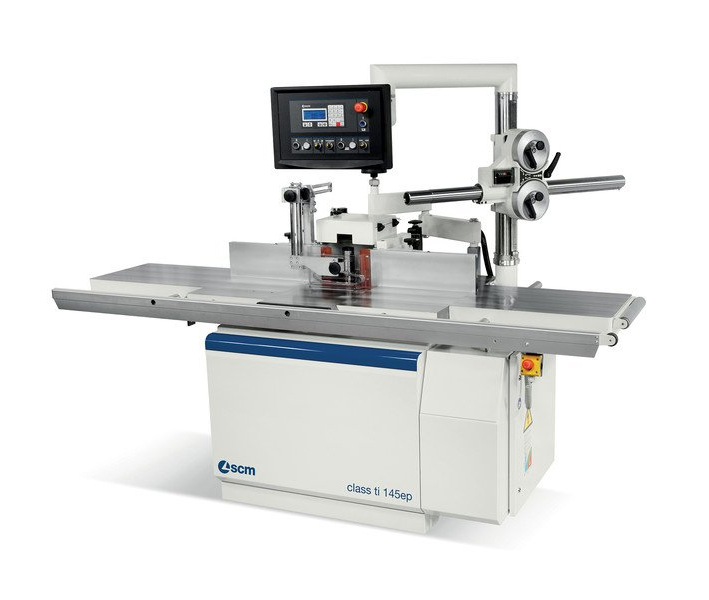

SCM TI145 Class

Click on photograph for zoom and see all photos

Description

Precision and reliability with the technological devices that guarantee reduced machine set up times, greater safety and ease-of use.

WANT MORE INFORMATION

Call Us On 028 9081 7704

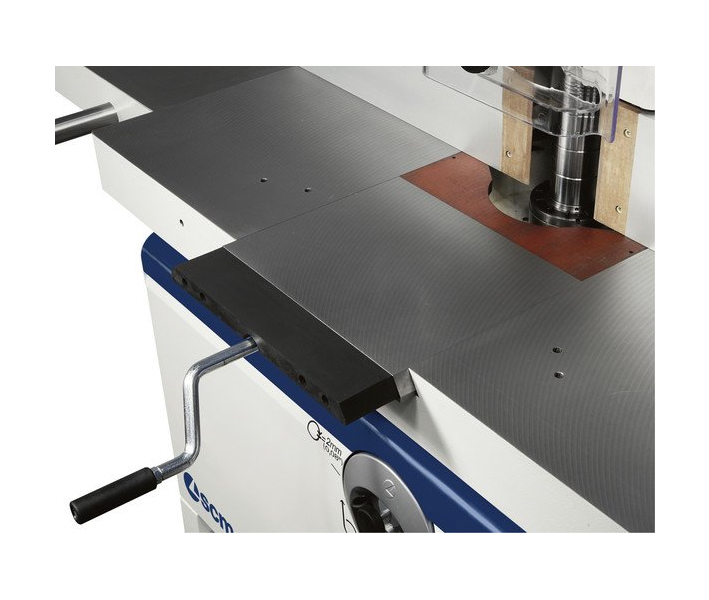

"FAST" sectional worktable: the best support for the workpiece. Provides support for the work piece being machined as it is close to the tool, allowing the adjustment with mounted tools.

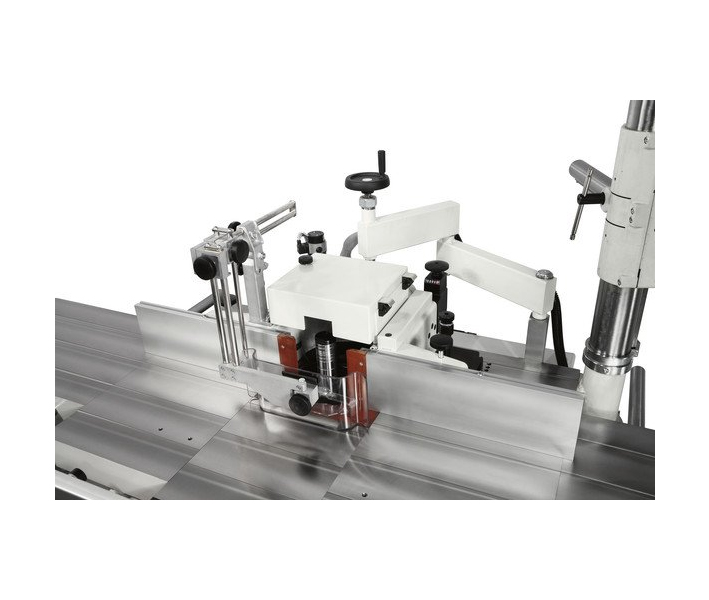

"FLEX-ONE" fence: easy set up . A single simple movement to retract and re-position accurately the fence on the worktable. No more test runs thanks to the automatic fence positioning with digital work depth indicator.

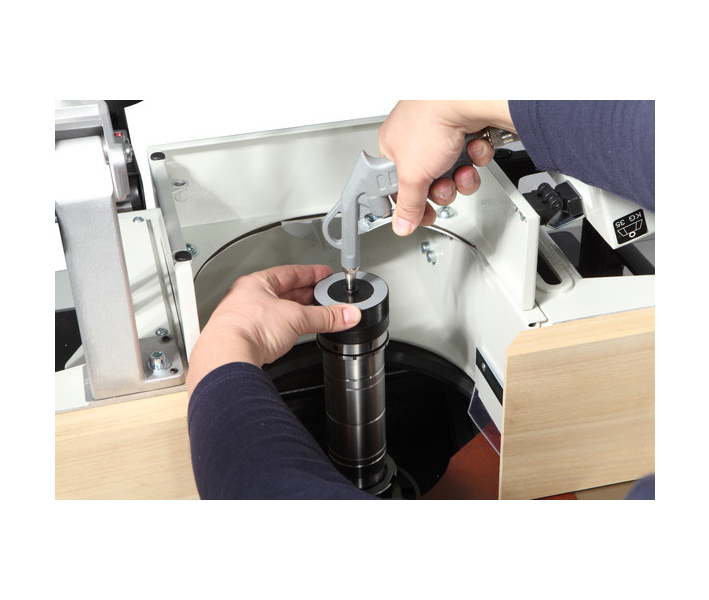

"T-SETrapid tool locking system: maximum degree of safety without any efforts. No more keys for machine tooling with the new device that ensures the fast locking/unlocking of tools simply through a gun with compressed air.

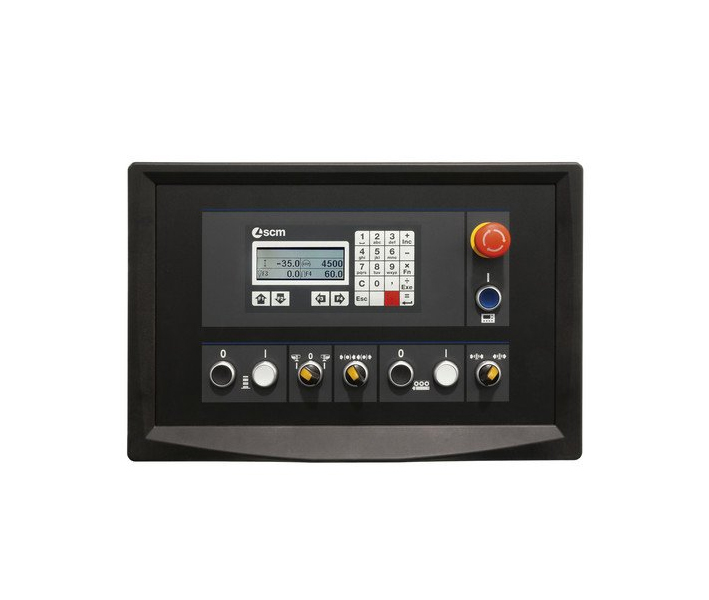

Work programming becomes simple and effective with the "Ready" last generation electronic control for managing of spindle lifting and tilting, spindle moulder fence positioning, display of spindle speed, counting and calculator.

Technical Data

class   ti 145 ep
Machine version   electronic
Worktable dimension mm 1200x780
Spindle tilting mm +/-45,50°
30-35 Ø spindle height (40 -50 Ø)  mm 140 (180)
Spindle base projection from the table mm 50
Max. tool diameter retractable under table mm 300x80
