Description

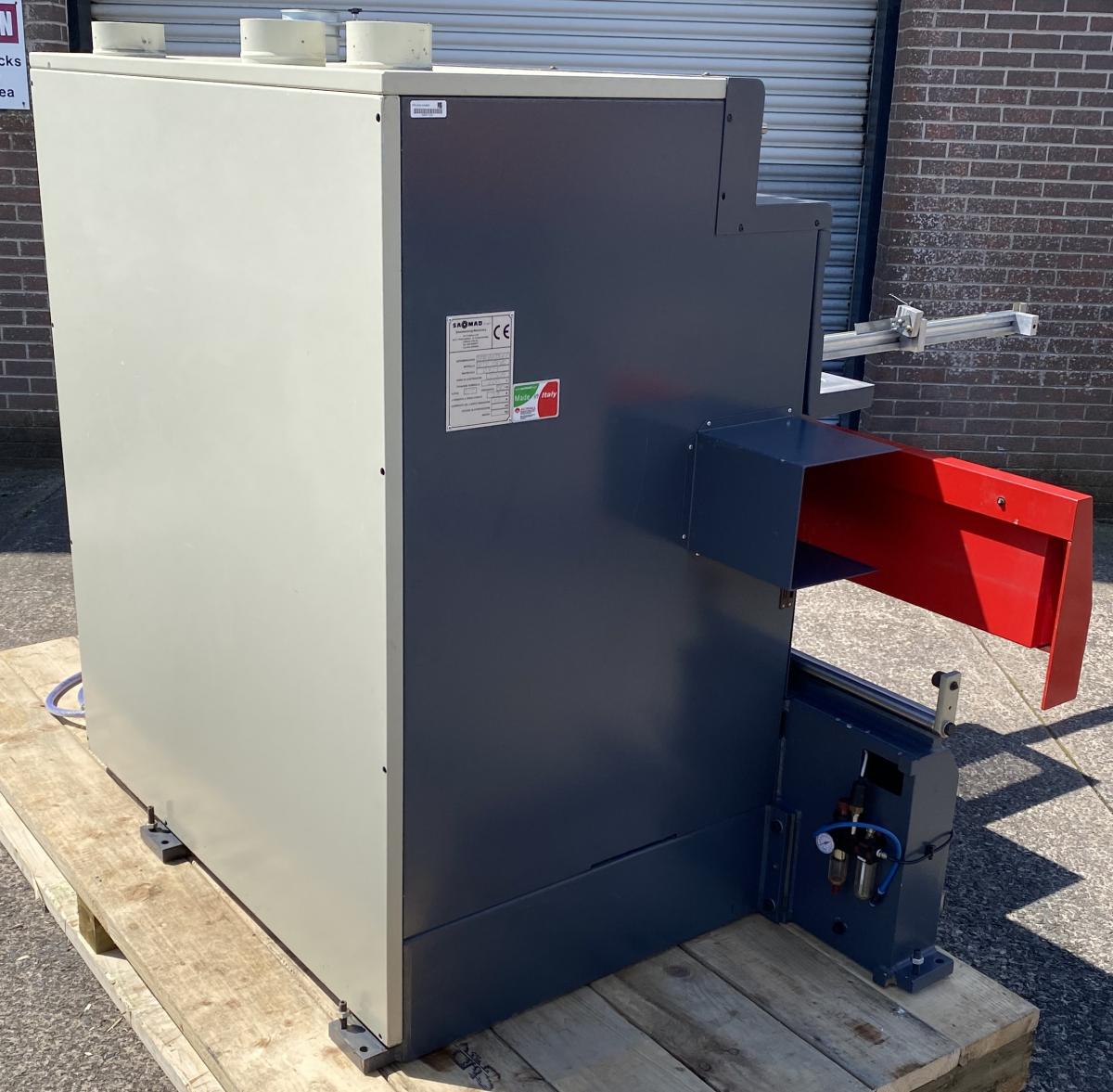

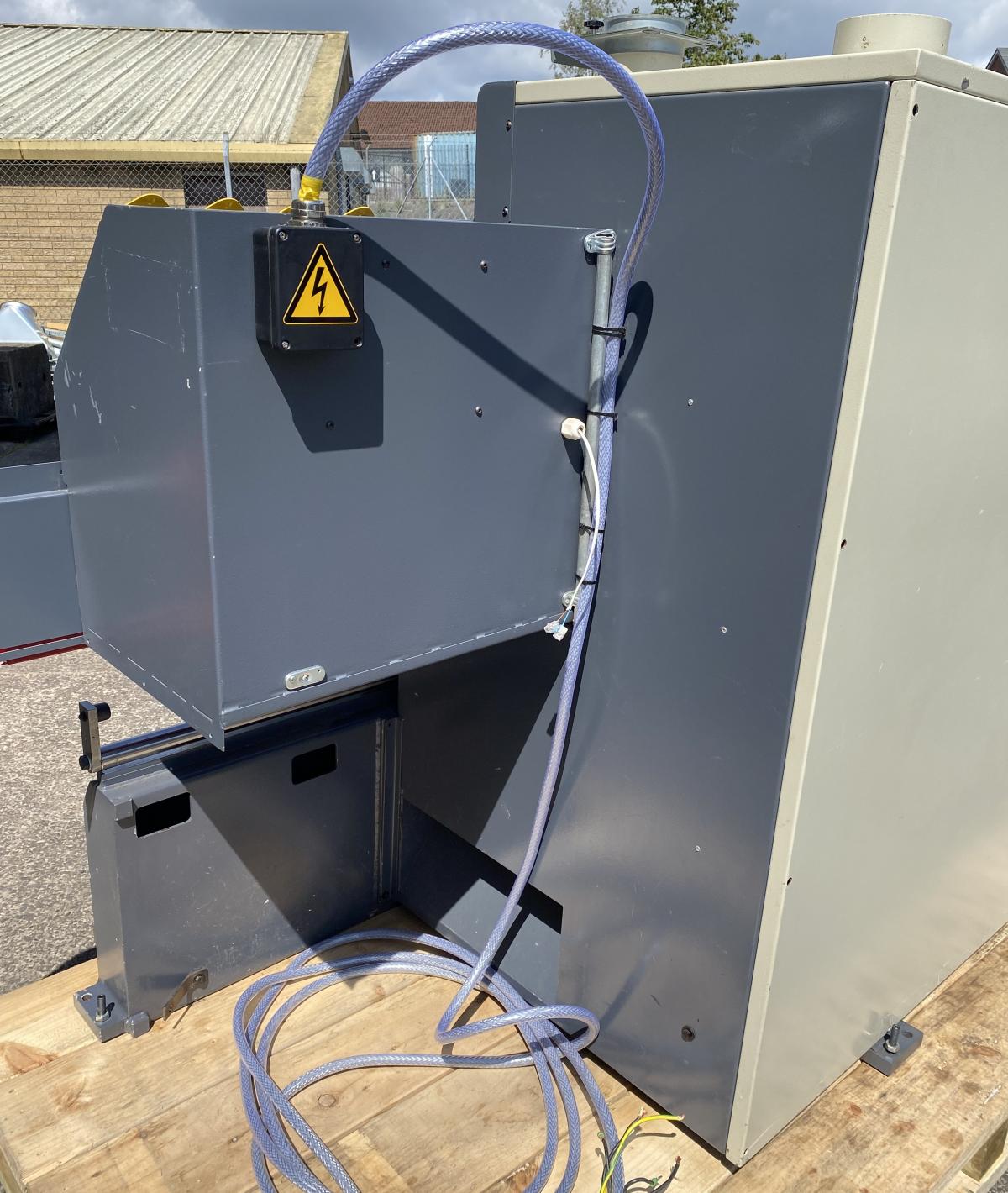

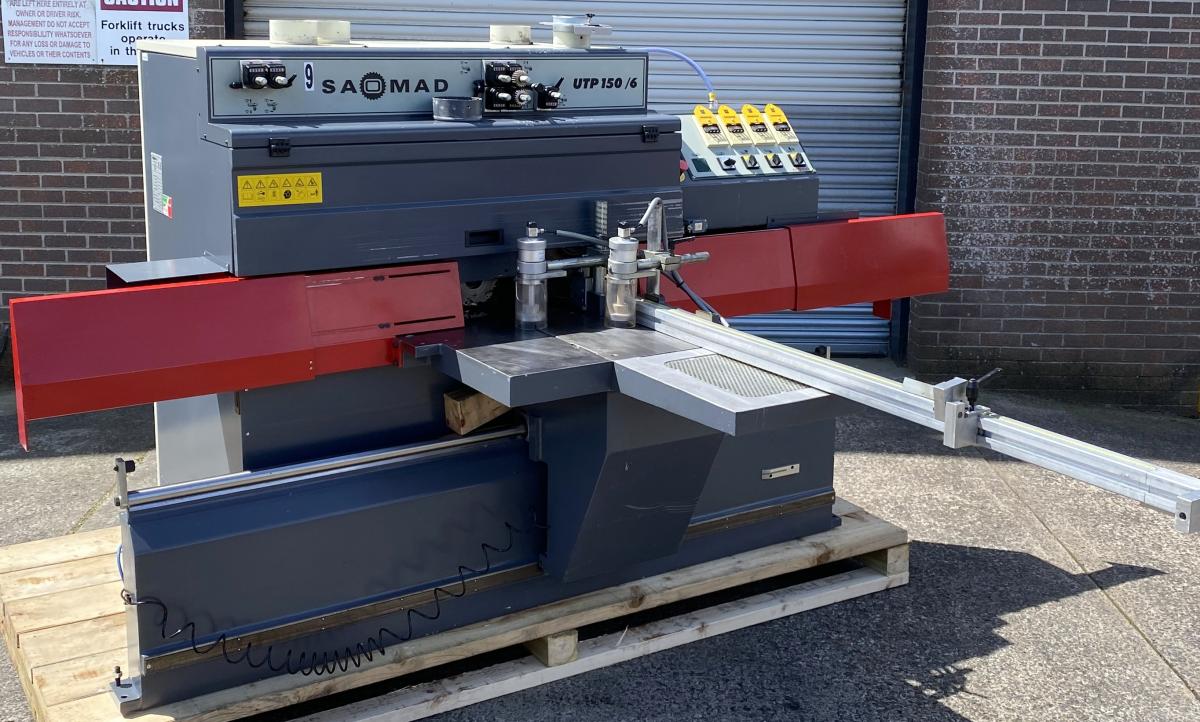

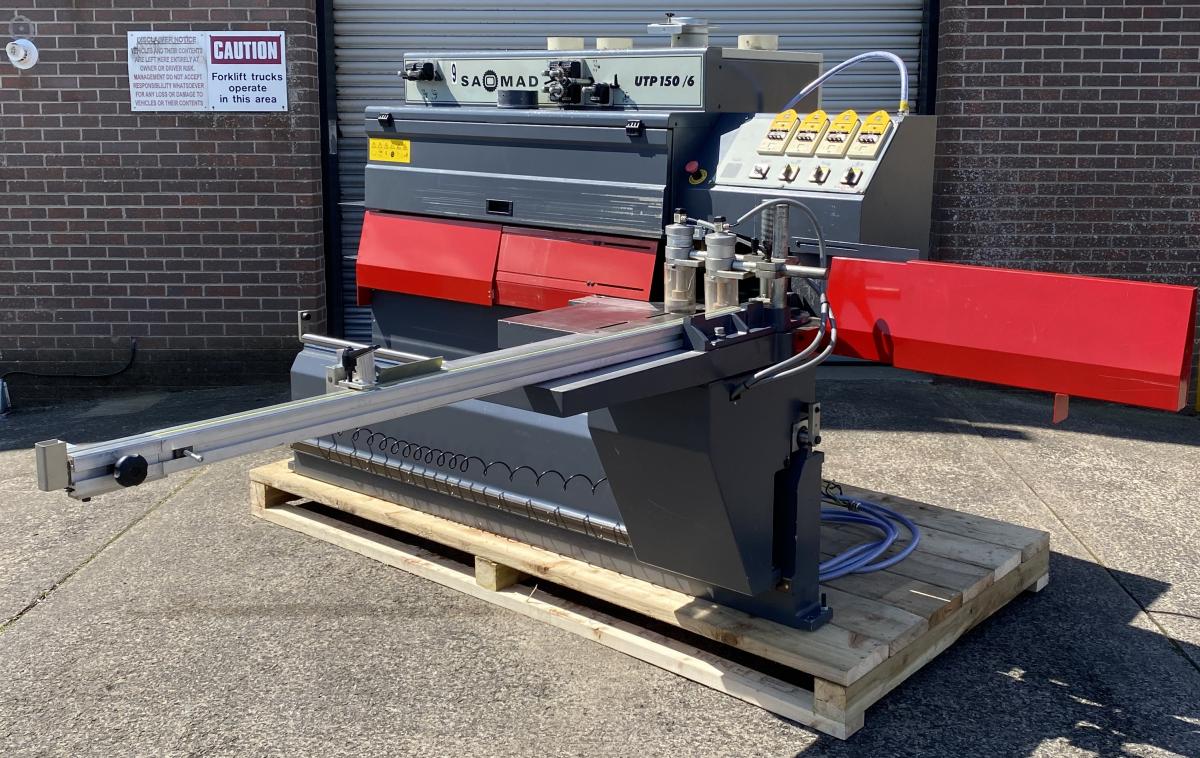

Saomad Single End Tenoner
- MAKE: Saomad
- MODEL: UTP 150 S
- SERIAL NO: NPL757/2721
- YEAR OF MANUFACTURE: 2005
- CONDITION: Pre Used
- VOLTAGE: 400V Single Phase
- DIMENSIONS MAX: 3200mm L x 2800mm W x 1700mm H
- WEIGHT: 1600Kg approx.
SPECIFICATIONS:
Circular Saw Trim Unit
- Saw blade: 400mm Diameter
- Cutting Height : 125mm Max.
- Horizontal Movement: 150mm
- Motor Power : 3 Kw
- Spindle : 30mm
Upper & Lower Tenoning Heads
- Tenon Head Dimensions : 160mm Dia x 150mm L
- Min - Max Head Adjustment: 5mm - 185mm
- Horizontal Adj of Bottom Head : 50mm
- Horizontal Adj of Top Head : 75mm
- Vertical Adj of Bottom Head : 185mm
- Vertical Adj of Top Head : 80mm
- Motor Power : 2.2kw ea
Spindle - Scribing Motor
- Tool Diameter : 320mm Max.
- Shaft Diameter : 35mm
- Shaft Length : 190mm
- Motor Power : 5.5 Kw
- Vertical Adjustment: 140mm
- Horizontal Adjustment : 150mm
For any further information or a price approximation feel free to contact me using reference code 757:
