Description

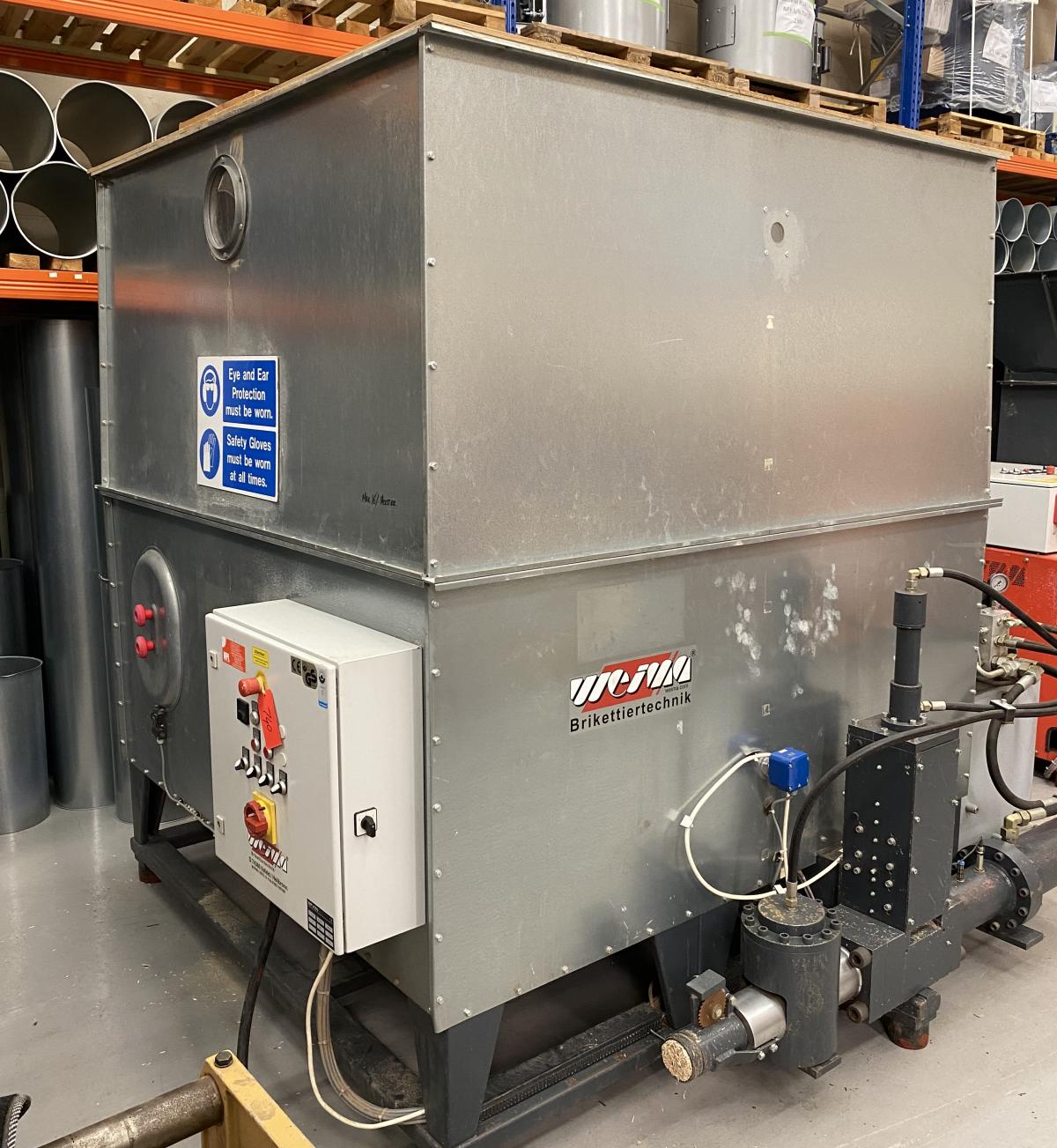

Weima Briquette Press TH 820
- MAKE: Weima
- MODEL: TH 820
- SERIAL NO: 980-162
- CONDITION: Fully Serviced
- WARRANTY: 6 Months (for more information see Used Equipment Terms Of Sale)
- YEAR OF MANUFACTURE: April 2009
- VOLTAGE: 400V 3 Phase
- DIMENSIONS MAX: 2900mm L x 2400mm W x 2420mm H
- WEIGHT: 1700kg approx.
SPECIFICATION
- Briquette diameter : 80mm
- Throughput per hour : 150-180Kg (dependant on material density)
- Hopper dimensions (Standard) : 2000mm L x 2000mm W x 960mm H
- (Optional Extra) Hopper Extension dimensions : 2000mm L x 2000mm W x 1000mm H
- (Optional Extra) Heavy duty gear box & re-enforced floor for hopper extension.
- (Optional Extra) High Level fill sensor for Hopper Extension
- (Optional Extra) Access Hatch, linked to limit switch
- Hydraulic Pump Motor : 11Kw
- (Optional Extra) Hydraulic Oil Cooling System for use 7+ hours.
- Automatic Start - Stop facility
- Starts the briquetter when material is placed into the hopper.
- Stops the briquetter when the hopper is empty.
- Automatic Briquette Length Adjustment
- On Board PLC automatically adjusts the machine to produce briquettes of consistant length
- 2787 Hours of use recorded on the Hourmeter at present.
